New Kilns

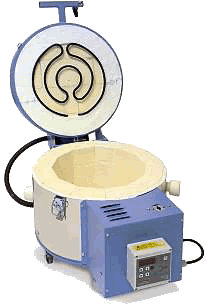

GF13 Top Loading Glass Fusing/Slumping Kiln. Click anywhere on this panel for more details.



Fantastic quality Glass Kiln Ideal for beginners and experienced artists



  • Maximum Design Temperature 860ºC
  • Inconel sheathed elements lid mounted
  • UK compliant electrical interlock
  • Type K thermocouple
  • Sideview / ventilation ports
  • Stainless steel cladding
  • Castor wheels
  • Top quality UK manufacture
  • Powered from standard 13amp UK plug
  • ST316 Glass controller.
  • Complete with furniture (1 Batt and 3 props)
  • Chamber dimensions: 330mm/13inch diameter / 153mm/6 inch height
  • 2 kw low power consumption plug and go kiln
  • 12 month manufacturers guarantee
  • £1200 + Postage

Test

Front Loading Kilns. Click anywhere on this panel for more details

Regarded as benchmark kilns to all sectors of education, the Falcon range is eminently suitable for all applications.
  • Pressed steel free standing cabinet with stove enamel paint finish
  • High quality insulation brick linings
  • Fully compliant electro mechanical door safety interlocks
  • Over temperature kiln lining protection
  • Optional Heatlock captive door system so the kiln cannot be opened at dangerous temperatures
  • Optional Automatic Damper system
Prices
    Kiln Controllers
Model PowerRating(Kw) ST312A ST314A ST315A ST316A ST501A ST3SeriesAutoDamper HeatLock KilnFurniture
FL3.1.50 4.5 £POA £POA £POA £POA £POA £POA £POA £POA
FL3.1.65 4.8 £POA £POA £POA £POA £POA £POA £POA £POA
FL3.1.80 6.26 £POA £POA £POA £POA £POA £POA £POA £POA
FL3.120 8.5 £POA £POA £POA £POA £POA £POA £POA £POA
FL3.160 9.76 £POA £POA £POA £POA £POA £POA £POA £POA
FL3.190 11.38 £POA £POA £POA £POA £POA £POA £POA £POA
FL3.215 12.75 £POA £POA £POA £POA £POA £POA £POA £POA
FL3.250 14.22 £POA £POA £POA £POA £POA £POA £POA £POA
FL3.230 12.75 £POA £POA £POA £POA £POA £POA £POA £POA
FL.280 15.25 £POA £POA £POA £POA £POA £POA £POA £POA
FL.340 18 £POA £POA £POA £POA £POA £POA £POA £POA
FL.350 18.5 £POA £POA £POA £POA £POA £POA £POA £POA
FL.420 22 £POA £POA £POA £POA £POA £POA £POA £POA
FL.500 24.5 £POA £POA £POA £POA £POA £POA £POA £POA
Specifications
Firing Chamber Overall Dimensions Supply
Type Capacity Litres/Cu Ft Width (mm/in) Depth (mm/in) Height (mm/in) Width (mm/in) Depth (mm/in) Height (mm/in) Weight (kg/lbs) Power(KW) 220/230v 380/400v
FL3.1.50 53/1.87 380/15 380/12 460/18 636/25.25 864/34 1245/49 177/391 4.5 25A -
FL3.1.65 66/2.34 380/15 380/15 460/18 636/25.25 864/34 1245/49 178/393 4.8 25A 16A
FL3.1.80 79/2.81 380/15 460/18 460/18 636/25.25 864/34 1245/49 185 408 6.38 32A 16A
FL3.120 122/4.31 460/18 460/18 580/23 715/28.25 1016/40 1372/54 245/541 8.5 40A 20A
FL3.160 163/5.75 460/18 610/24 580/23 715/28.25 1016/40 1372/54 245/541 9.78 50A 20A
FL3.190 191/6.75 460/18 610/24 680/27 715/28.25 1016/40 1372/54 245/541 11.38 63A 25A
FL3.215 215/7.5 460/18 510/20 910/36 715/28.25 1016/40 1600/63 306/675 12.75 63A 25A
FL3.250 256/9.00 460/18 610/24 910/36 715/28.25 1016/40 1600/63 310/684 14.23 80A 32A
FL3.230 226/8.00 610/24 610/24 610/24 965/38 1066/42 1346/53 310/684 12.75 63A 25A
FL.280 283/10.00 610/24 610/24 760/30 965/38 1066/42 1500/59 456/1006 15.75 80A 32A
FL.340 340/12.00 610/24 610/24 910/36 965/38 1193/47 1676/66 495/1092 18 - 32A
FL.350 354/12.50 610/24 760/30 760/30 965/38 1193/47 1500/59 480/1059 18.5 - 32A
FL.420 424/16.00 610/24 760/30 910/36 965/38 1193/47 1676/66 535/1180 22 - 40A
FL.500 510/18.00 610/24 910/36 910/36 965/38 1346/53 1676/66 590/1301 24.5 - 40A
FL.680 680/24.00 610/24 910/36 1220/48 965/38 1346/53 1981/78 900/1985 32 - 50A
FL.1000 1000/35.00 800/31.5 1000/39.25 1250/49.25 1150/45.25 1473/58 2032/80 1100/2426 45 - 80A
FL.1250 1250.00/45.50 1000/39.25 1000/39.25 1250/49.25 1350/53.15 1510/59.45 2032/80 1500/3307 55 - 100A

All Prices exclude delivery. Before you decide on your kiln please contact us and we will give you advice on your best options for delivery, siting and use of the kiln.
